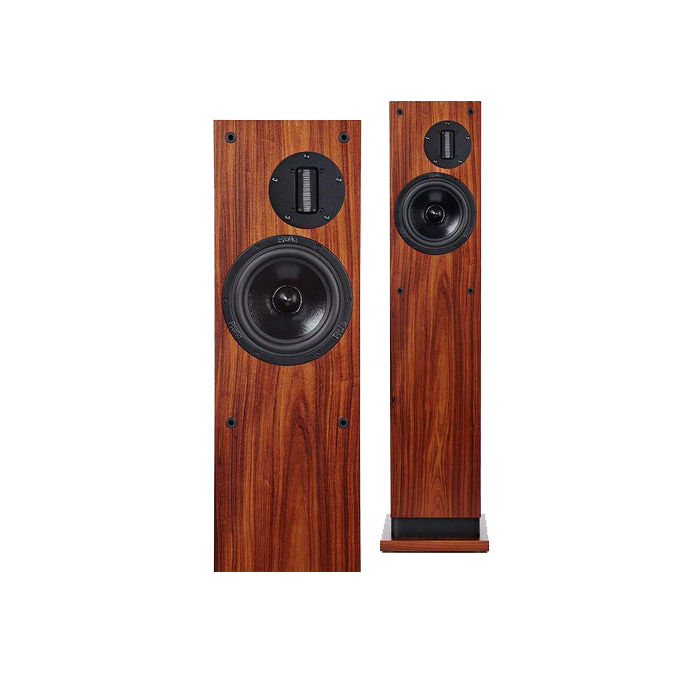

Response D30S
ProAc have updated the D30 to a D30S. Still available in a dome or ribbon tweeter – Response D30DS and D30RS respectively
Overview
The New Response D30 RS/DS
ProAc have developed a new bass driver using a cone similar to that used in our Response D48, the cone is made from pulp and Mika and is coated with an acoustic dope it also now has a phase plug to improve detail at the crossover point, which will give a more natural sound.
The Response D30S’ now offer a beautifully flat response. The new bass driver and crossover will give better mid-range detail and a wider sound stage.

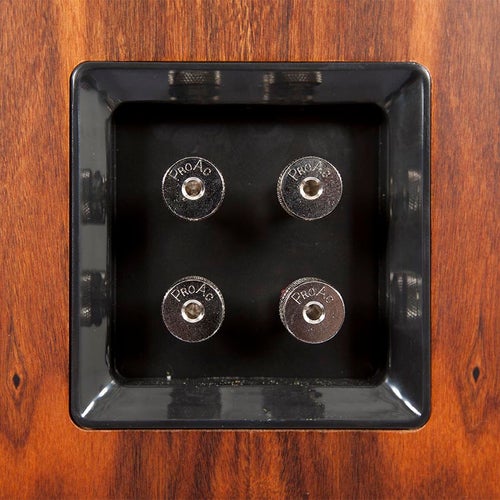

The D30S offers an exceptional accurate portrayal of the music with powerful bass response and excellent midrange detail with low colouration. They also offer a resistive load and are easy to drive. We use a crossover with the finest quality components split for bi-wiring and bi-amping through our beautiful nickel silver terminals.
The new D30DS/RS cabinet dimensions will stay the same and will still be available in Black, Cherry, Mahogany, Maple, Oak and White as standard with extra finishes in Ebony or Rosewood.
The price will stay the same as the old model.
SPECIFICATION
Nominal Impedance
8 ohms
Recommended Amplifiers
10 to 200 watts
Frequency Response
20Hz to 30KHz
Sensitivity
89 dB linear for 1 watt at 1 metre
Bass/Midrange
6.5 inch (165mm) ProAc unit with Pulp Mika Cone and phase plug, coated with acoustic layer.
Tweeter
D30 (D)S (dome): Fitted with 1″ silk dome tweeter with air cooling
D30 (R)S (ribbon): ProAc ribbon unit 60mm by 10 mm as light as a human hair with rear chamber damping
D30 (R)S (ribbon): ProAc ribbon unit 60mm by 10 mm as light as a human hair with rear chamber damping
Crossover
HQ network using the finest dedicated components wired with multi strand oxygen free copper cable split for bi wiring or bi-amplification
Dimensions
Cabinet Height: 41″ (1041mm),
Width: 8.5″ (215mm), Depth: 10.5″ (266mm)

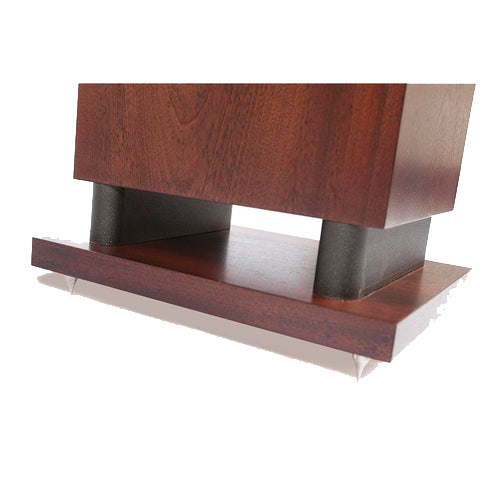

Plinth: Width: 10 1/8″ (257mm),
Depth: 12 1/4″ (311mm)
Weight
27 Kgs per cabinet unpacked
Mode
Floorstanding
Grille
Acoustically transparent crimplene
Finish
Standard Finishes: Black Ash, Mahogany, Cherry, Maple.
Premium Finishes: Rosewood, Ebony.
